The radar sensor is based on pulsed coherent radar technology and combines extremely low power consumption with high accuracy. The unique characteristics of this radar sensor make it possible to identify materials and detect motion in advanced sensor applications. The small size, only 5×5 mm, and low power consumption are ideal for compact battery-driven and mobile devices. In mid 2022, Acconeer broke the milestone of more than 1 million shipped sensors to over 60 countries.

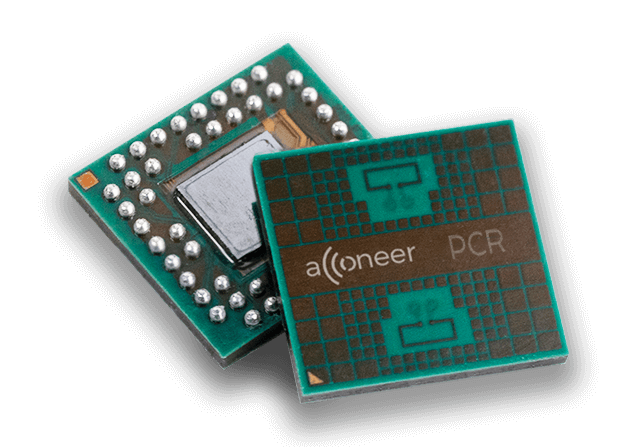

A121
The A121 is a radar system based on pulsed coherent radar (PCR) technology and is setting a new benchmark for power consumption and distance accuracy – fully integrated in a small package of 29 mm2.
The A121 60 GHz radar system is optimized for high precision and ultra-low power, delivered as a one package solution with integrated Baseband, RF front-end, and antenna. This will enable easy integration into any portable battery driven
device.
The A121 is based on leading-edge patented pulsed coherent radar technology with picosecond time resolution. The sensor can measure up to 20 meters and the actual measurable distance is dependent on object size, shape, and dielectric properties.
The A121 60 GHz radar remains uncompromised by any natural source of interference, such as noise, dust, color and direct or indirect light.
Applications
High precision distance measurements with mm accuracy and high update rate
Proximity detection with high accuracy and the possibility to define multiple proximity zones
Motion detection and velocity measurement
Material detection and classification
High precision object tracking, enabling robot navigation
Gesture control
Monitoring of vital life signs such as breathing and pulse rate
Features
Accurate distance ranging and movements
Measures absolute range up to 20m (absolute accuracy in mm, relative accuracy in µm)
Possible to recognize movement and gestures for several objects
Support continuous and single sweep mode
HPBW typical of 65 (H-plane) and 53 degrees (E-plane)
Easy integration
60 GHz Pulsed Coherent Radar (PCR)
Integrated Baseband, RF front-end, and Antenna in Package
5.5 x 5.2 x 0.88 mm fcCSP, 0.5 mm pitch
Can be integrated behind plastic or glass without any need for a physical aperture
Single reflowable component
1.8 V single power supply, enable with Power on Reset (PoR)
1.8 V or 3.3 V IO interface power supply
Clock input for crystal 24MHz
SPI interface for data transfer, up to 50 MHz SPI clock support
INTERRUPT support

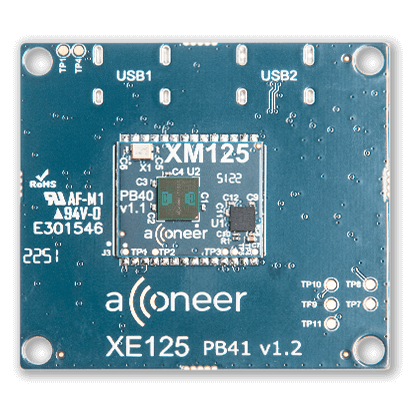

A121 Evaluation Kit
The XE125 Module Evaluation Kit includes hardware and software to start developing with the A121 Radar Sensor.
